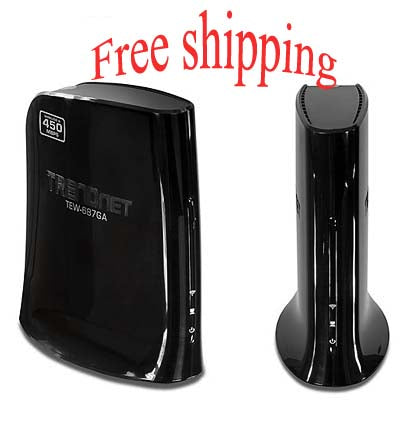

TRENDnet�™s N450 Wireless Gaming Adapter, model TEW-687GA, networks gaming consoles, televisions, and DVRs to the Internet with an ultra-high performance 450Mbps wireless connection.

Setup is quick and simple, with no drivers to install and a Gigabit Ethernet port transfers wired data fast.

Advanced Multiple Input Multiple Output (MIMO) antenna technology with three spatial streams per antenna generates a maximum theoretical wireless throughput of 450Mbps. Connect to a router at the touch of a button with Wi-Fi Protected Setup (WPS). WMMR Quality of Service (QoS) technology prioritizes gaming, Internet calls, and video streams. LEDs on the front of the adapter convey device status. Cut your cables and start winning with ultra-high performance 450Mbps wireless n.

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.

• 1 x 10/100/1000Mbps Auto-MDIX LAN port
• 1 x Wi-Fi Protected Setup (WPS) button
• 1 x Reset button
• Diagnostic LEDs
• High performance wireless n data rates of up to 450Mbps
• Wi-Fi compliant with IEEE 802.11n standard
• Backwards compatible with IEEE 802.11g/b devices
• Supports 64/128-bit WEP, WPA-PSK, and WPA2-PSK wireless security
• ?Wi-Fi Multimedia (WMM) Quality of Service (QoS) data prioritization
• Supports Multiple Input Multiple Output (MIMO) antenna technology
• One-touch wireless security setup using the Wi-Fi Protected Setup (WPS) button when connecting to a WPS supported device
• Maximum reliability, throughput and connectivity with automatic data rate switching
• Easy user setup wizard and intuitive Web browser configuration
• Coverage of up to 50 meters indoor, 100 meters outdoor

Specifications:

Hardware
Standards	IEEE 802.11b, IEEE 802.11g, and IEEE 802.11n
Interface	1 x 10/100/1000Mbps Auto-MDIX LAN ports
LED Indicator	Power, LAN, Wireless, WPS
Power	12V DC 0.5A power adapter
Buttons	Reset button ��restores factory default settings WPS button ��enables WPS function
Power Consumption	4.5 watts (max)
Dimensions (LxWxH)	60 x 118 x 135 mm (2.4 x 4.6 x 5.3 in.)
Weight	153 g (5.4 oz.)
Temperature	Operating: 0?° ~ 40?° C (32?° ~ 104?° F) Storage: -20?° ~ 60?° C (-4?° ~ 140?° F)
Humidity	Max. 90% (non-condensing)
Certifications	CE, FCC
Wireless
Frequency	2.412 ~ 2.472 GHz
Data Rate (auto fallback)	802.11b: up to 11Mbps 802.11g: up to 54Mbps 802.11n: up to 450Mbps
Output Power	802.11b: 18dBm (typical) 802.11g: 15dBm (typical) 802.11n : 13dBm (typical)
Receiving Sensitivity	802.11b: -84dBm (typical) 802.11g: -72dBm (typical) 802.11n: -69dBm (typical)
Encryption	64/128-bit WEP , WPA/WPA2-PSK
Channels	1~11 (FCC), 1~13 (ETSI)
