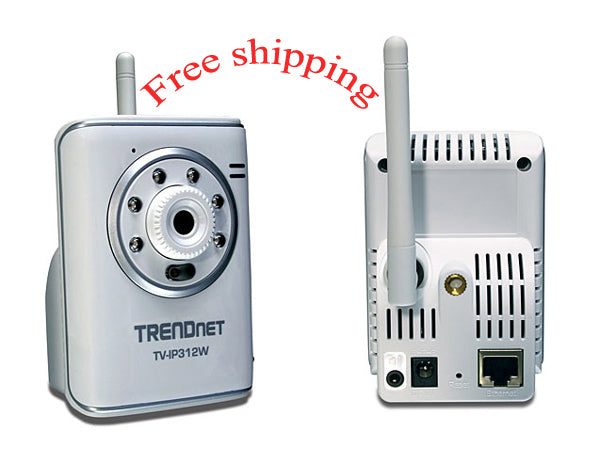

The Wireless 2-Way Audio Day/Night Internet Camera transmits real-time high quality video and audio over the Internet. See, hear and talk to people, in your camera’s viewing area during the day or in the dark, from any Internet connection. Complimentary SecurView camera management software allows you to monitor what you value most at home or at work.

The camera provides crystal clear MPEG4 video streams over a secure encrypted internet connection. The Infrared lens provides night monitoring for low light environment. A built-in microphone and optional speakers accommodate 2-way audio communication. Advanced intuitive software includes motion detection recording, email alerts, scheduled recordings and progressive search options. This cameras brilliant image quality, USB flash support, day and night capabilities and 2-way audio make it ideal for home, small office and business use.

• Compatible with wireless g and b devices.
• Advanced encryption modes include WEP, WPA-PSK and WPA2-PSK
• Built-in USB port allows you to store still image directly onto a USB flash or hard drive
• Infrared lens enables day and night version (night visibility up to 5 meters)
• Supports TCP/IP networking, SMPT Email, HTTP, Samba and other Internet protocols
• High quality MPEG-4 and MJPEG video recording with up to 30 frames per second
• Supports 3GPP live video viewing via 3G mobile phone
• Hear and talk to people in your camera’s viewing area through your computer
• Record streaming video to your computer and Network Storage
• Supports still image snapshot to FTP, Email and Flash drive
• Motion detection with Email notification
• Supports two adjustable motion detection windows with just-in-time snapshot
• Embedded Watchdog feature automatically reboots camera if an operational errors is detected
• Supports time stamp overlay
• Quick Universal Plug and Play installation
• Free SecurView software: view and record up to 16 cameras simultaneously

* Does not support SSL

** USB port supports up to 500mA power device with FAT16/32 format

*** The 3G service from a mobile phone provider is required

**** Windows 32-bit only. Monitoring multiple cameras may require a high performance CPU and graphic card.

SecurView cameras are not compatible with TRENDnet’s IPView Pro camera application for ProView cameras. .

Specifications:

Camera Specifications
Image Sensor
Sensor	1/4″ Color CMOS Sensor
Resolution	640 x 480 Pixel
Fixed Lens	f: 4.6mm, F: 2.8 (IR Lens)
Viewing Angle	60 Degree
Minimum Illumination	0.5Lux @ F2.0
Audio
Microphone Input	Internal Omni-Directional Sensitivity: -48dB + 3dB Response Frequency: 50 ~ 16000Hz
Audio Output	3.5mm Speaker Output Jack
Format	PCM/AMR (Mono)
Video/Image Setting
Video Format	MPEG4(Simple Profile), MJPEG, 3GPP
Image Frame Rate	30fps @VGA, QVGA, QQVGA
Frame Rate Setting	1 ~ 30fps
Compression Ration Setting	5 Levels
Resolution	640 x 480, 320 x 240, 160 x 120
Exposure Control, White Balance, Gain Control	Automatic
Image Setting	Adjustable Brightness, Contrast, Saturation
Flip Images	Vertical/Horizontal
Light Frequency	50Hz, 60Hz or Outdoor
Communication
LAN	10/100Mbps Auto MDIX
Protocol	HTTP, FTP, TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, PPPoE, UPnP, RTP, RTSP, RTCP
Hardware Specifications
System
CPU	ARM9 base
RAM	32Mbyte SDRM
ROM	8Mbyte Nor Flash
OS	Linux
System Requirement (Web Configuration)
CPU	Pentium III 350MHz or above
Memory Size	128MB or above
Resolution	800 x 600 or above
Browser	Internet Explorer 6.0 or above
Supported OS	Windows 7, Vista, XP, 2000
System Requirement (SecurView Software)
CPU	Pentium 4 1GHz or above
Memory Size	512MB or above
Resolution	1024 X 768 or above
Supported OS	Windows 7 (32-bit), Vista (32-bit), XP (32-bit), 2000
Physical /Environment
Dimension	70 x 100 x 57mm (2.67 x 3.94 x 2.95 in.)
Weight	Camera: 170g (6 oz.) Stand: 135g (4.76oz.)
Power	5VDC, 2.5A External Power Adapter
Power Consumption	8 Watts (Max)
LEDs	Power (Orange), Link (Green) LED Enable/Disable Support
IR Wavelength	850nm
Temperature	Operation: 0oC ~ 45oC (32oF ~ 113oF) Storage : -10oC ~ 60oC (14oF ~ 140oF)
Wireless
Standard	IEEE 802.11b/g
Security	64/128-bit WEP, WPA-PSK, WPA2-PSK
Antenna	2dBi Detachable Reverse SMA Connector
Other
USB Port	USB 1.1 (Type 1) Up to 500mA Power Device with FAT16/32 Format
IR Sensor (minimum lux)	Normal mode: 2~2.5 lux Night mode on: 0.5 lux IR on: 0 lux Light sensor activates the IR LED on/off: 5~10 lux
